Name: IEC driefasen asynchrone motor1LE1003-1CC03-4JB4-Z
Brand: INNOMOTICS
SKU: 31763
Price: 1172.15 EUR
Availability: InStock

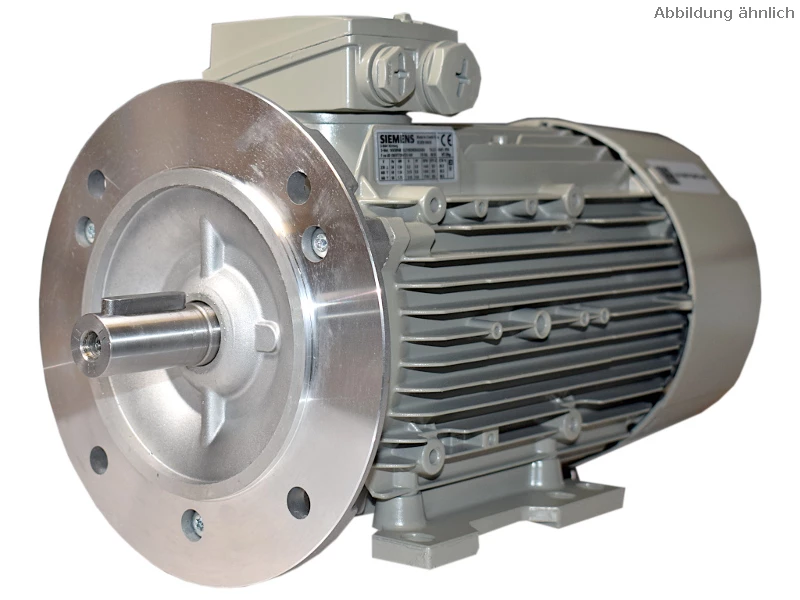

IEC three-phase asynchronous motor

Manufacturer/Type: INNOMOTICS 1LE1003-1CC03-4JB4-Z

Item no: 31763

1LE1003-1CC03-4JB4-Z IEC-Drehstrom-Asynchronmotor

Selected configuration

230/400V/D/Y, 50Hz
Protection class IP55
Base version: Feet screwed on (H01)
Top terminal box
1 set (3 pcs.) PTC thermistors
Colour RAL7030 stone grey

Reconfigure

985,00 EUR

1.172,15 EUR incl. VAT plus Shipping costs

The price of this product includes a copper surcharge of currently 19,50%

In stock - delivery Wednesday, 27 May
Order within 0 hours and 55 minutes by express delivery.

Standard shipping: Delivery 28-29 May

Delivery area: Germany - Info

Quantity

Technical data

IEC size	132S
Voltage	see selected configuration
Power	3,0 kW
Rated speed	975 rpm
Efficiency class	IE3 (Premium Efficiency)
Efficiency at 100% nominal load	85,6 %
Rated current at 400V	6,9 A
Protection class	see selected configuration
Insulation class	F
Operating mode	S1 (continuous operation)
Design	B35
Flange size	A300
Shaft end (dxL)	38x80 mm
Bearing d side	6208-2Z-C3/lubricated for life
Bearing n-side	6208-2Z-C3/lubricated for life
Color	see selected configuration
housing	Aluminium
Weight	42,00 Kg

Description

Product description
INNOMOTICS GP three-phase asynchronous motor with aluminium housing as an economical solution for use under standard ambient conditions in industrial environments.

Features

High quality and reliable product
Compact design & low weight
Screw-on feet

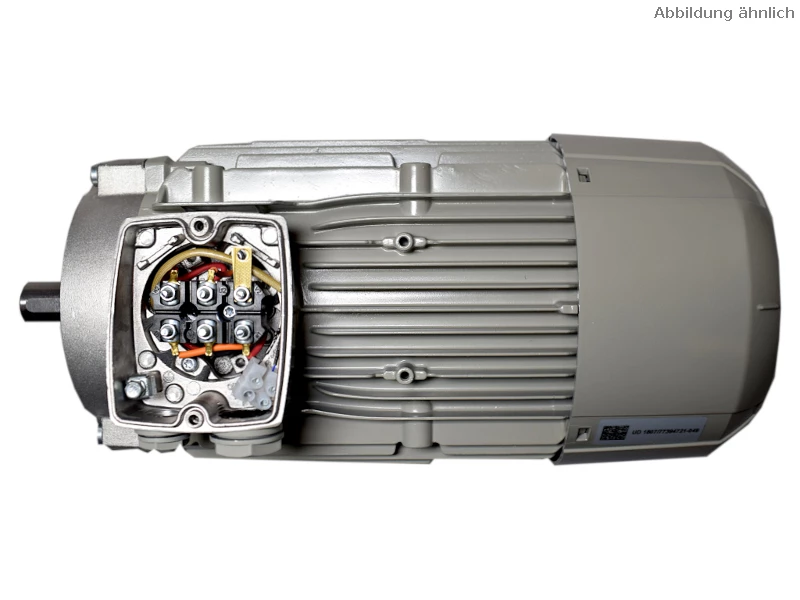

Easily accessible terminal box
Integrated lifting eyes
Suitable for operation with frequency inverter

Scope of delivery

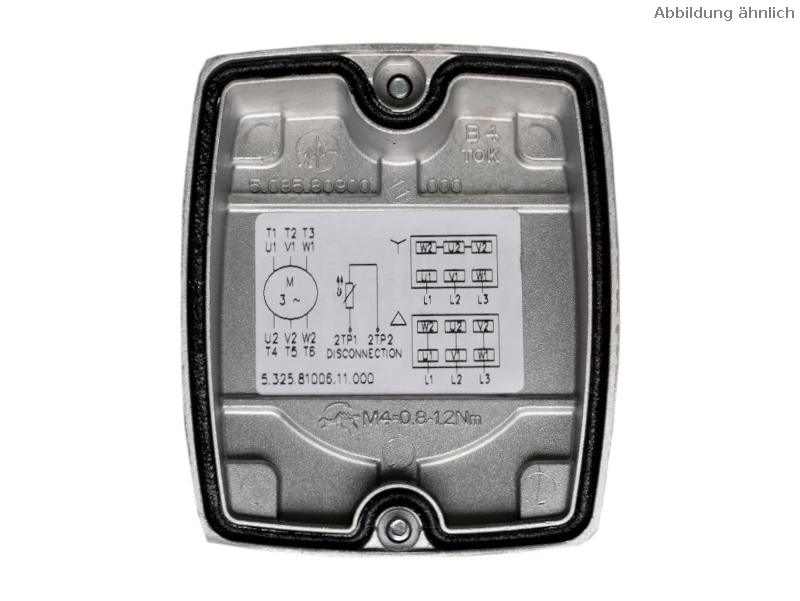

Motor with ready-to-connect terminal box (with terminal diagram)
Shaft with feather key
Operating and maintenance instructions

Data blisters and drawings (German only)

Data and dimension sheet

Download

CAD files (various formats) on request (registration required)

Dokumentation

Operating instructions
(8.5MB)

Download

Product configurator

Dit product kan worden geconfigureerd. De geselecteerde opties worden weergegeven in de bestelinformatie en de productprijs en levertijd worden automatisch bijgewerkt.

Opmerkingen over het selecteren van opties (Alleen in het Duits) (andere opties beschikbaar op aanvraag)

230/400V/D/Y, 50Hz (Standard - 0,00 EUR)

400/690V/D/Y, 50Hz ( 0,00 EUR)

IP55 (Standard - 0,00 EUR)

Voeten vastgeschroefd (H01) (Standard - 54,00 EUR)

Top (Standard - 0,00 EUR)

rechts ( 84,00 EUR)

links ( 84,00 EUR)

1 set (3 stuks) PTC-thermistors (Standard - 0,00 EUR)

RAL7030 steengrijs (Standard - 0,00 EUR)
