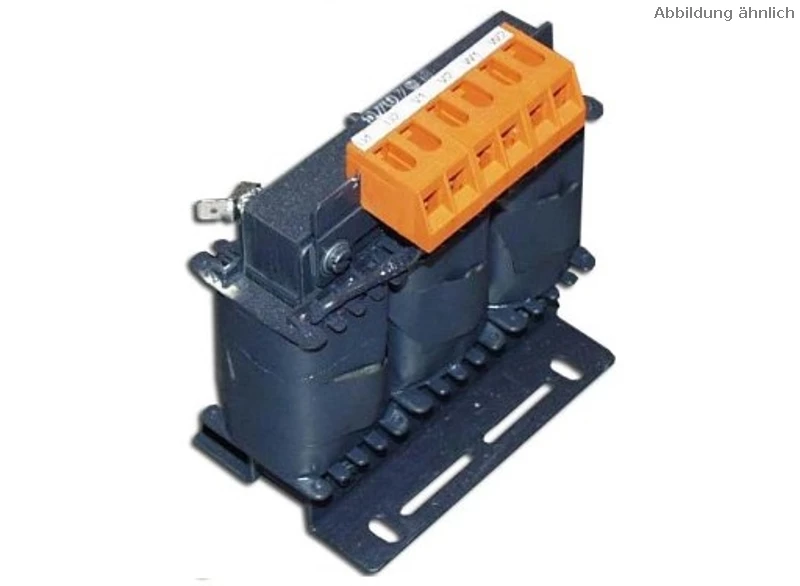

Mains choke

Mains choke

Manufacturer/Type: Hitachi DWSN4-00250
Item no: 14674

Selected configuration

The product can only be ordered online in standard configuration (see technical data).
Options may be available on Request possible.

203,00 EUR
241,57 EUR incl. VAT plus Shipping costs

Technical data

Nominal voltage400V/50Hz/3ph
Rated current25 A
Rated motor power11,0 kW
Inductance1.18 mH
ISO classF
Protection classIP00
Dimensions(WxHxD) 155x170x100mm
Weight 5,00 Kg

Description

  • Mains chokes reduce the mains feedback and the absorbed mains current. Additional protection for the frequency inverter.
  • Three-phase mains choke and commutation choke according to VDE 0570-2-20
  • Vacuum impregnated
  • max. ambient temperature 40°C
  • Uk=4% at 400V, 50Hz
  • Overload capacity 150% for 60s (within 10min)
  • Product can be used regardless of manufacturer

Data blisters and drawings (German only)
Data and dimension sheet
